Sleeve staging + transport
Lean Sleeve Cart
Compact sleeve staging for everyday mounting-room flow.
Move complete sleeve sets between storage, mounting, press staging, and return without setting sleeves on tables, floors, or temporary racks. Built with adjustable horizontal pole locations, custom pole lengths, locking swivel casters, and a small footprint for tight production areas.
Why plants use it
A compact staging cart for the work between storage and press.
A compact horizontal sleeve staging cart for keeping a job's sleeve set together from storage to mounter to press and back.
Stage one job's sleeves together
Keep sleeves off floors, tables, and temporary carts
Move through tight mounting-room aisles
Adjust pole positions as sleeve needs change
Give operators a dedicated cart between long-term storage and the press
Best fit
For daily sleeve staging, job changeovers, and return-to-storage workflows.
For mounting departments that need a compact cart for daily sleeve staging, job changeovers, sleeve transport, and return-to-storage workflows.
Use this cart when
Operators need to keep a sleeve set together for one job
Sleeves need to move from storage to mounter to press staging
The mounting area has tight aisles or limited floor space
The plant wants adjustable horizontal pole locations instead of a fixed one-purpose cart
Consider another cart if
The plant needs long-term high-density sleeve storage
The goal is to store the highest sleeve count per footprint
The application is vertical sleeve storage
The product being moved is anilox/precision cylinders instead of flexographic sleeves

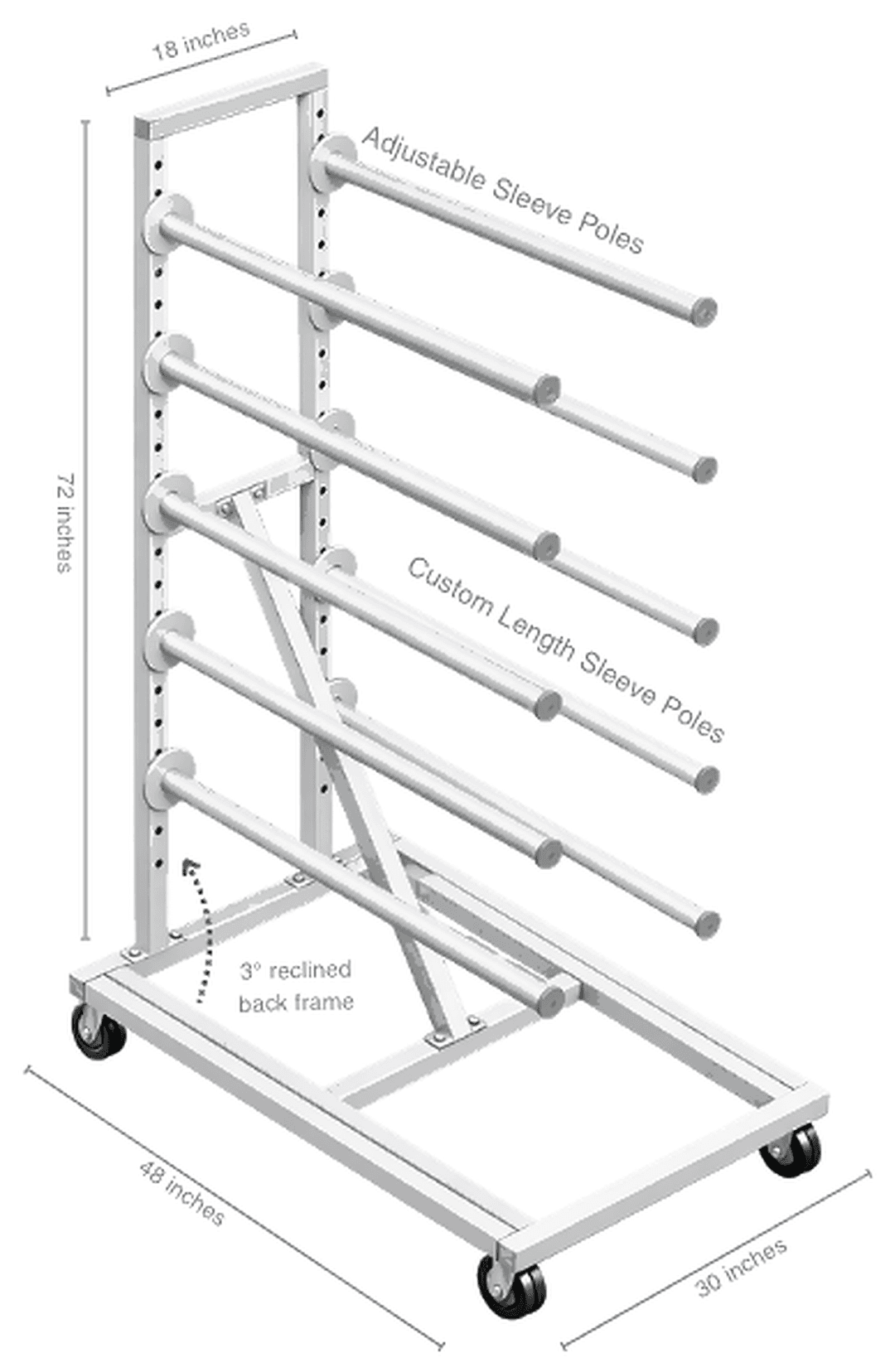

Dimensioned Diagram
Adjustable pole height. Custom pole length. Compact cart footprint.
Pole locations adjust vertically on 1.5" spacing. Pole length is selected for the sleeve widths and repeat sizes the plant needs to stage.
Base length
48 inches
Base width
30 inches
Back frame
72" tall x 18" wide
Hole spacing
1.5 inches
Caster style
Full swivel locking casters
Back frame angle
3 degree reclined back frame
Pole length
Custom length poles
Pole layout
Adjustable sleeve pole locations
Pole mount
Protective base plates
Proof Points
Our most popular sleeve cart because it fits tight mounting rooms, handles daily job staging, and gives operators a simple place to keep a sleeve set together before and after mounting.
Compact 48" x 30" base footprint
Adjustable pole locations on 1.5" spacing
Built for repeated daily movement on locking swivel casters
Workflow role
Built for the moments between storage and press.
The Lean Sleeve Cart gives operators a dedicated place to stage the sleeves for the next job, move them to the mounter, and return them without setting sleeves on tables, floors, or random carts. It keeps the sleeve set together while taking up minimal space in the mounting department.
Not sure which sleeve cart fits your plant?
Tell us how your sleeves move through the mounting department and we'll recommend the cart style that fits your workflow.
